產品介紹：

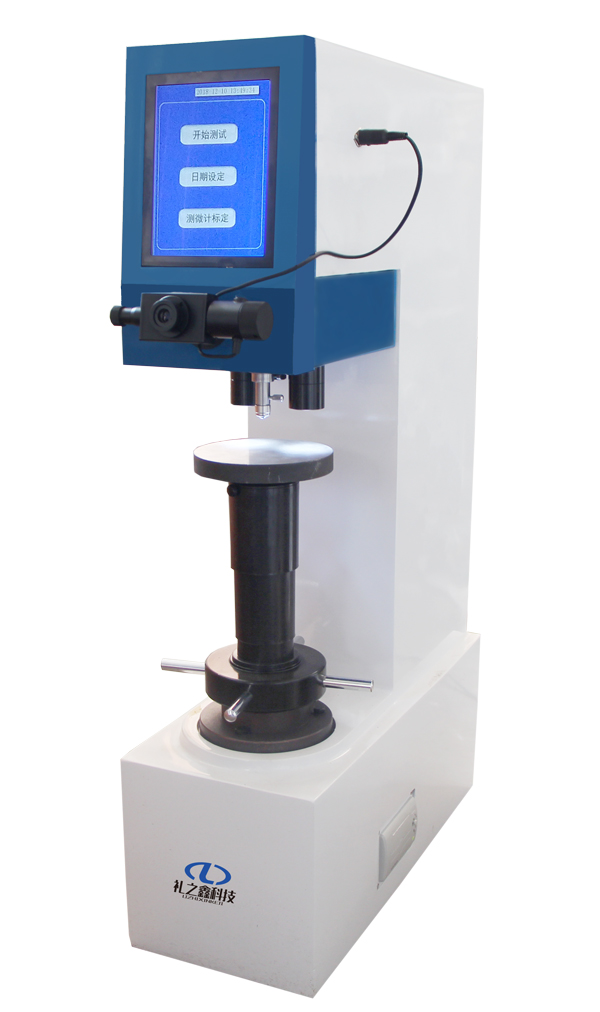

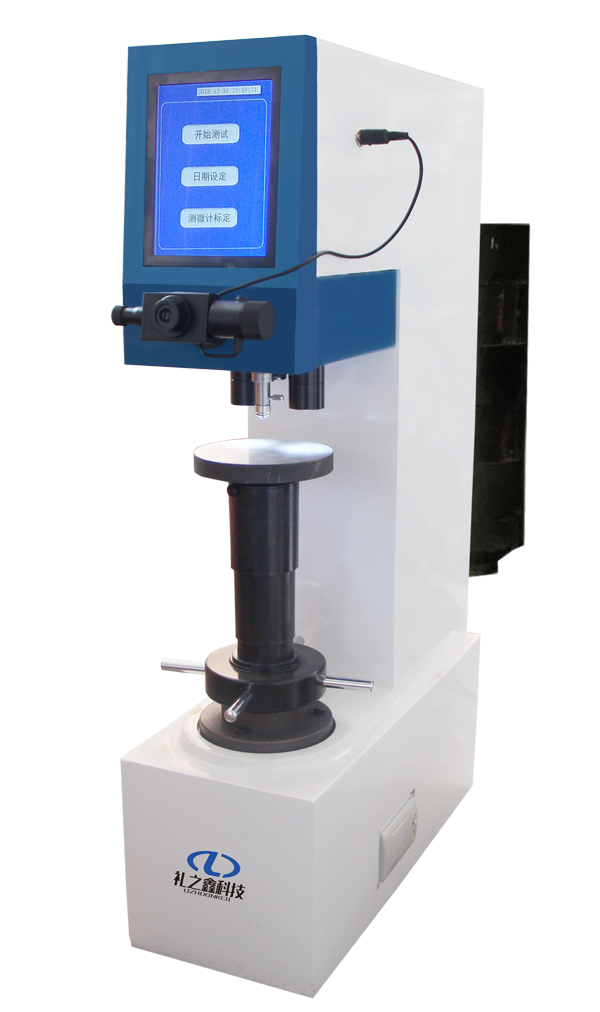

1.HBS-3000AT,HBS-3000AET觸摸屏數顯布氏硬度計，采用8寸觸摸屏和高速ARM處理器，顯示直觀，人機互動友好，操作簡便；運算速度快，數據庫巨量存儲，數據自動修正，并提供數據折線報表；

2.機身使用優質鑄鐵一次澆鑄成型，配合以汽車烤漆處理工藝，外形圓潤美觀；

3.HBS-3000AT,HBS-3000AET配置自動轉塔功能,壓頭和鏡頭之間自動切換，使用更加方便;

4.便捷控制系統，可自動進行全硬度標尺的單位轉換;

5.電子閉環控制施加試驗力，完全實現了加荷、保荷、卸荷的自動化運行；

6. 配備高清光學雙物鏡，可測量從31.25-3000kgf標準試驗力下的不同直徑的壓痕；

7. 可設置硬度值，當測試值超過設定范圍時，發出報警音；

8. 具有軟件硬度值修正功能，可以在一定范圍內直接對硬度值進行修正；

9. 具有數據庫功能，對試驗數據自動進行分組保存，每組可保存10個數據，可以保存2000個以上數據；

10. 具有硬度值曲線顯示功能，直觀顯示硬度值的變化；

11. 配置無線藍牙打印機，并可通過RS232、USB接口輸出數據；

12.可選配CCD圖像處理系統或視頻測量裝置；

13. 精度符合GB/T231.2-2018、ISO6506-2和美國ASTM E10標準。

Product Features:

● HBS-3000T,HBS-3000ET,HBS-3000AT,HBS-3000AET Touch-Screen digital Brinell hardness tester adopt 8 -inch touch screen and high-speed ARM processor, Visual display, friendly man-machine interaction, easy operation, Fast operation speed, extensive database storage, data automatic correction, and provide data broken line report；

● The machine body is integral casting by high quality cast iron, with the automotive paint treatment process, the appearance is round and beautiful；

● HBS-3000AT,HBS-3000AET Equipped with automatic turret function, automatic switching between the indenter and the lens, more convenient to use;

● Convenient control system can automatically convert the unit of full hardness scale；

● The electronic closed-loop control exerts the test force, fully realizes the automatic operation of loading,holding and unloading of the test force;

● The maximum and minimum hardness values can be set, when the test value exceeds the set range, an alarm sound will be issued；

● With the function of software hardness value correction, the hardness value can be directly corrected within a certain range；

● With the database function, the test data can be saved automatically in groups, each group can save 10 data, total can save more than 2000 data;

● With the hardness value curve display function, intuitive display the changes of hardness value;

● Equipped with HD optical two lens, it can measure indentation of different diameters from 31.25 to 3000kgf standard test force;

●The maximum and minimum hardness values can be set, when the test value exceeds the set range, an alarm sound will be issued；

● With the function of software hardness value correction, the hardness value can be directly corrected within a certain range；

● With the database function, the test data can be saved automatically in groups, each group can save 10 data, total can save more than 2000 data;

● With the hardness value curve display function, intuitive display the changes of hardness value;

● Equipped with wireless blue-tooth printer, the data can be output through RS232 and USB interface port；

● Equipped with the independent small floodlight, convenient for user operation in the bad light；

● Accuracy is in line with GB/T230.2, ISO6508-2 and American ASTM E18 standard.
