產品介紹：

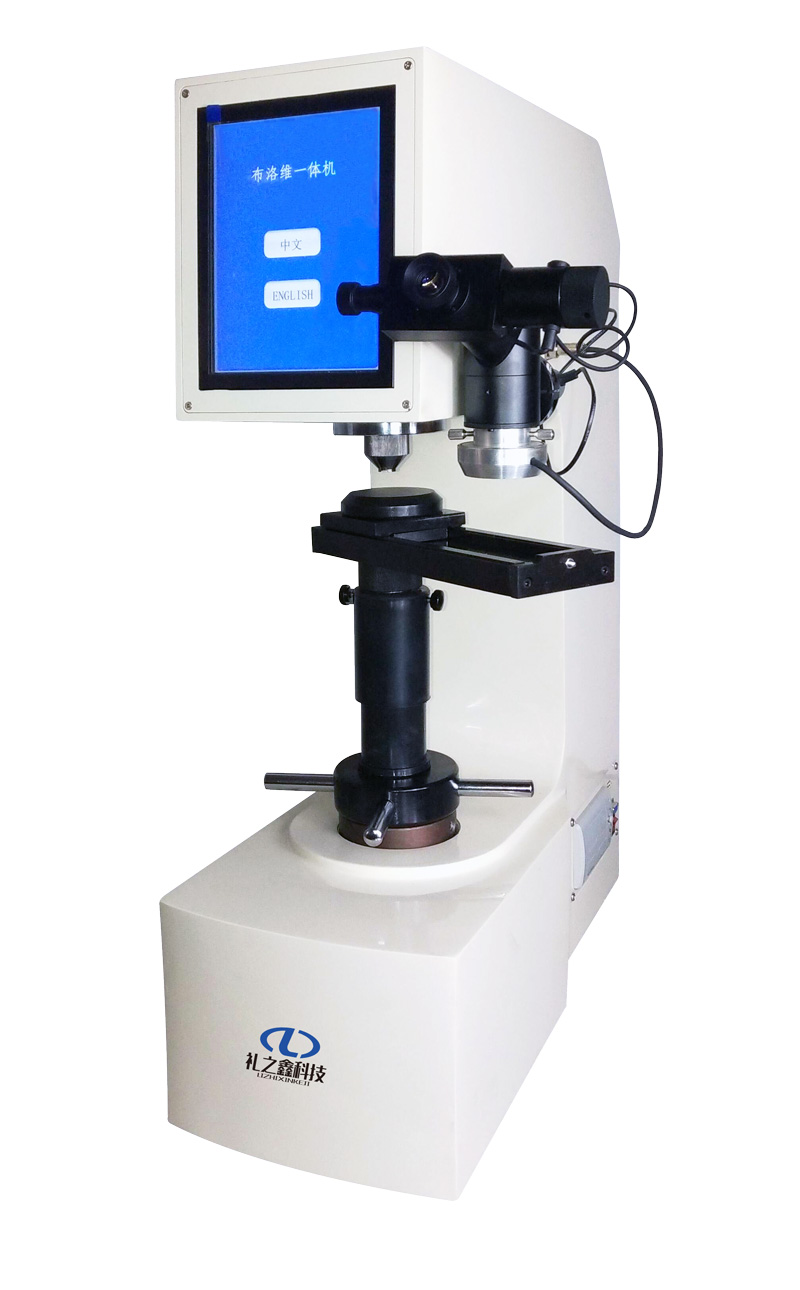

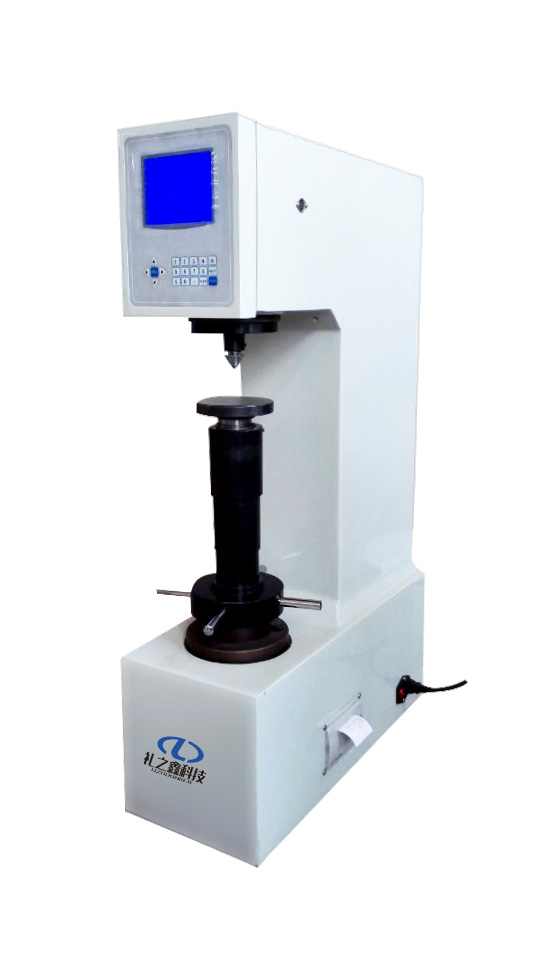

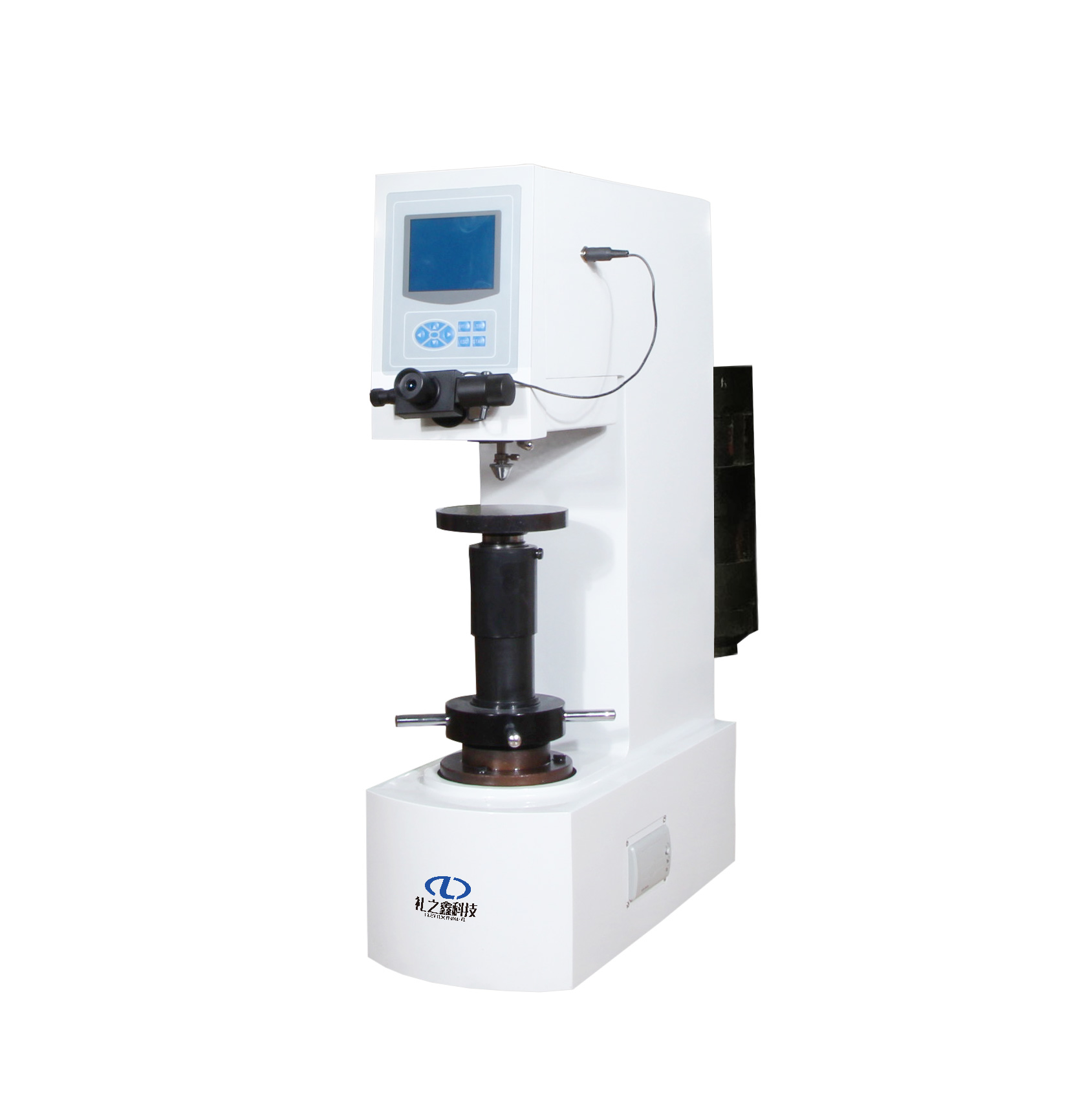

●HBS-3000,HBS-3000E數顯布氏硬度計，壓痕可在機上通過測微目鏡直接測量，并能在LCD顯示液晶屏上顯示壓痕的直徑、硬度值，并可顯示與設置測試標尺、試驗力、壓頭類型、保荷時間、換算單位等;

●機身使用優質鑄鐵一次澆鑄成型，配合以汽車烤漆處理工藝，外形圓潤美觀；
● HB-3000B，HBS-3000采用砝碼加荷，結構堅固，剛性好，可靠耐用，測試效率高；
● HB-3000C，HBS-3000E采用閉環電加荷，具備過載、過位自動保護功能；試驗過程自動化，無人為操作誤差；
● 采用電動加卸試驗力，由5‰精度的壓力傳感器進行閉環反饋，高速ARM處理器控制并能對試驗力進行自動修正；

● 便捷控制系統，可自動進行全硬度標尺的單位轉換；
● 配置內置微型打印機，并可通過RS232端口輸出數據；

● 精度符合GB/T231.2-2018、ISO6506-2和美國ASTM E10標準。

Product Features:

● HBS-3000,HBS-3000E Digital Brinell hardness tester, the indentation can be measured directly through the micrometer eyepiece, the diameter and hardness value can be displayed on the LCD screen. Test force, indenter type, holding time and the conversion unit can be displayed and set;

● The machine body is integral casting by high quality cast iron, with the automotive paint treatment process, the appearance is round and beautiful;

● HB-3000B，HBS-3000 adopt weights loading, the structure is firm, high rigidity, accurate, reliable and durable, high test efficiency;

●HB-3000C，HBS-3000E adopt closed loop electric loading, with overload and over position automatic protection function, test process automation, no manual error;

● Adopt the electric motor loading/unloading test force, the closed-loop feedback is carried out by the pressure sensor with 5‰ accuracy, and the test force can be automatically corrected by the high-speed ARM processor；

● Convenient control system can automatically convert the unit of full hardness scale；

● Equipped with built-in printer, the data can be output through RS232 port；

● The accuracy is in line with GB/T231.2, ISO6506-2 and A

主要參數：

Main Parameters:
