重慶禮之鑫科技有限公司

產品介紹：

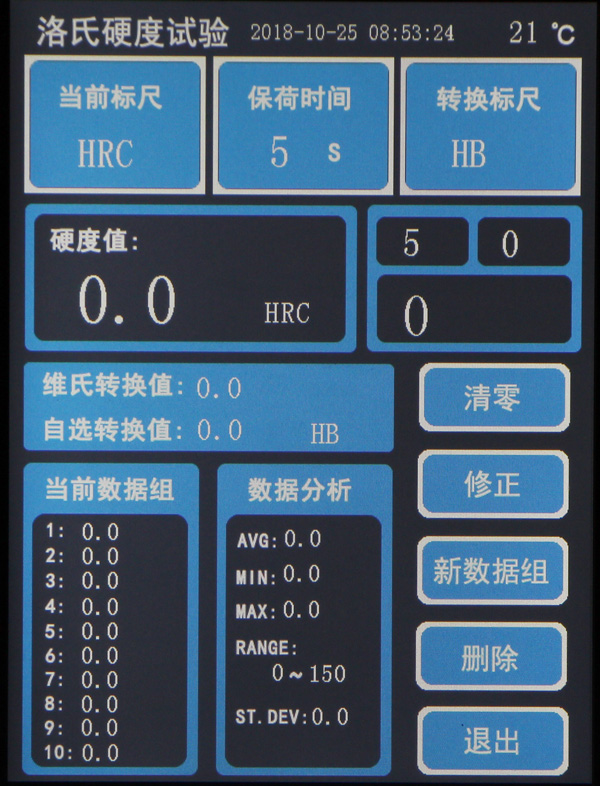

● HRS-150T采用8寸觸摸屏和高速ARM處理器，顯示直觀，人機互動友好，操作簡便；運算速度快，數據庫廣量存儲，數據自動修正，并提供數據折線報表；

● 機身部分使用機身使用優質鑄鐵一次澆鑄成型，配合以汽車烤漆處理工藝，外形圓潤美觀；

● 帶有溫度測量功能，數字化測溫電路，長期工作，穩定可靠；

● 具有圓柱面和球面自動修正功能，并有相應提示；

● 可設置硬度值，當測試值超過設定范圍時，發出報警音；

● 具有軟件硬度值修正功能，可以在一定范圍內直接對硬度值進行修正；

● 具有數據庫功能，對試驗數據自動進行分組保存，每組可保存10個數據，可以保存2000個以上數據；

● 具有硬度值曲線顯示功能，直觀顯示硬度值的變化；

● 數據庫可自動記錄標尺、試驗力、硬度值、溫度等參數；

● 每組的試驗點數量，可在1到10點范圍內自由設定；

●系統對每組的硬度值自動計算；

● 便捷控制系統，可自動進行全硬度標尺的單位轉換；

● 配置無線藍牙打印機，并可通過RS232、USB接口端口輸出數據；

● 具有獨立的小型照明燈，在光線不良時方便用戶操作；

● 精度符合GB/T230.2-2018、ISO6508-2和美國ASTM E18標準。

Product Features:

● HRS-150T Touch-Screen digital Rockwell hardness tester adopt 8 -inch touch screen and high-speed ARM processor, Visual display, friendly man-machine interaction, easy operation, Fast operation speed, extensive database storage, data automatic correction, and provide data broken line report；

● The machine body is integral casting by high quality cast iron, with the automotive paint treatment process, the appearance is round and beautiful；

● With the temperature measurement function, digital temperature measurement circuit, long-term work, stable and reliable；

●  It has the function of automatic correction of cylindrical surface and spherical surface, with the corresponding tips；

● The maximum and minimum hardness values can be set, when the test value exceeds the set range, an alarm sound will be issued；

● With the function of software hardness value correction, the hardness value can be directly corrected within a certain range；

● With the database function, the test data can be saved automatically in groups, each group can save 10 data, total can save more than 2000 data;

● With the hardness value curve display function, intuitive display the changes of hardness value;

● The database can automatically record the scale, test force, hardness values, temperature and other parameters；

● The number of test points for each group can be freely set within the range of 1 to 10 points;

● The system automatically calculates the maximum, minimum and average hardness values of each group；

● Convenient control system can automatically convert the unit of full hardness scale；

● Equipped with wireless blue-tooth printer, the data can be output through RS232 and USB interface port；

● Equipped with the independent small floodlight, convenient for user operation in the bad light；

● Accuracy is in line with GB/T230.2, ISO6508-2 and American ASTM E18 standard.

主要參數：

Main Parameters：
