產品介紹:
1.HR-150S, HRD-150S, 200HRD-150S手動/電動數顯表洛氏硬度計為數字顯示硬度值,并可設置保荷時間及單位轉換;
2.機身使用優質鑄鐵一次澆鑄成型,配合以汽車烤漆處理工藝,外形圓潤美觀;
3.數顯表直接讀數,并可自動轉換為布氏硬度、維氏硬度;
4.采用了精密液壓緩沖器,無緩沖液泄漏,且加卸荷平穩、無沖擊, 速度可調;
5. HRD-150S,200HRD-150通過電機來控制試驗力的加荷、保荷、卸荷,消除了手動洛氏硬度計的人為操作和讀數誤差;
6. 精度符合GB/T230.2-2018、ISO6508-2和美國ASTM E18標準。
Product Features:

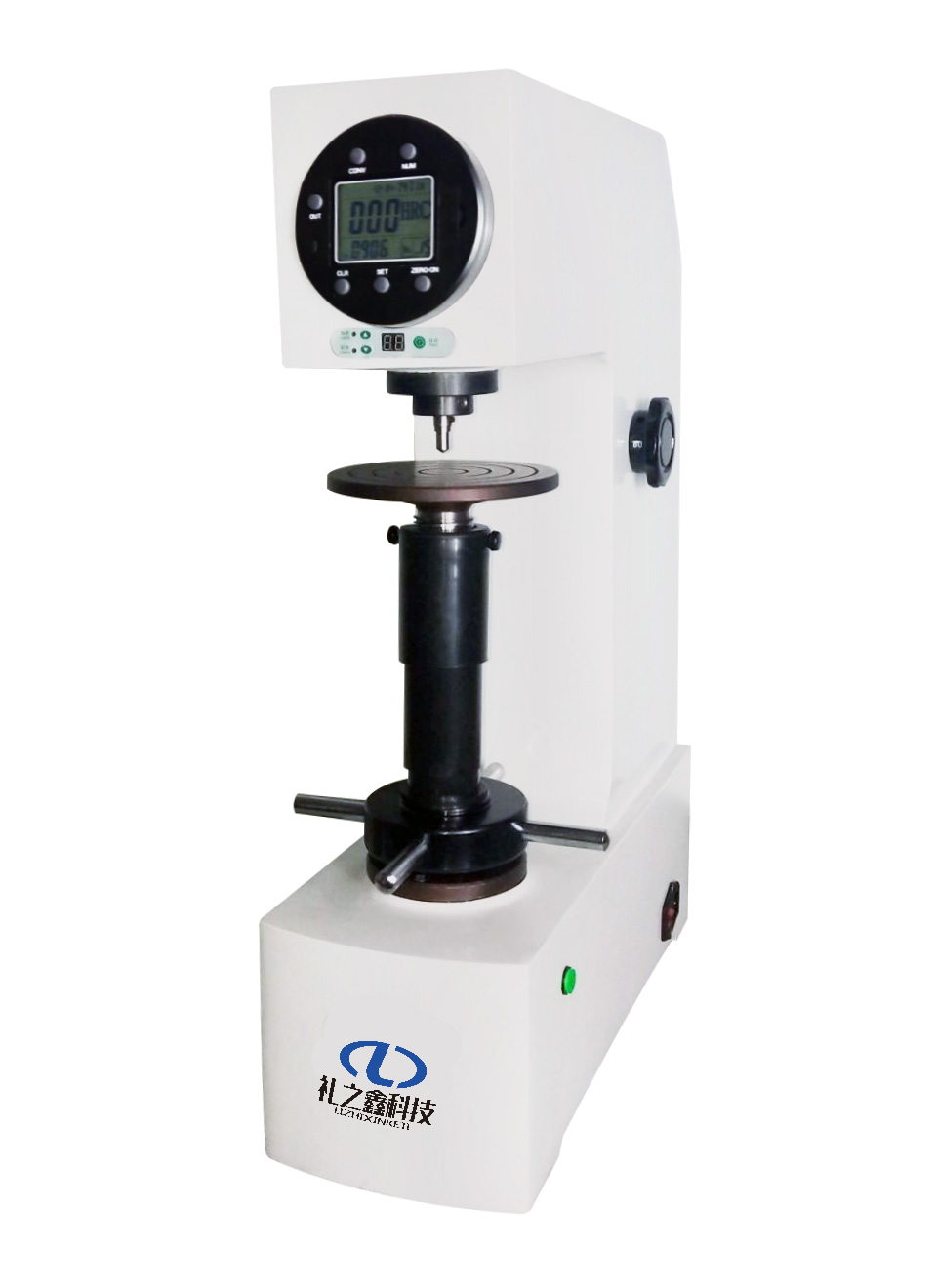

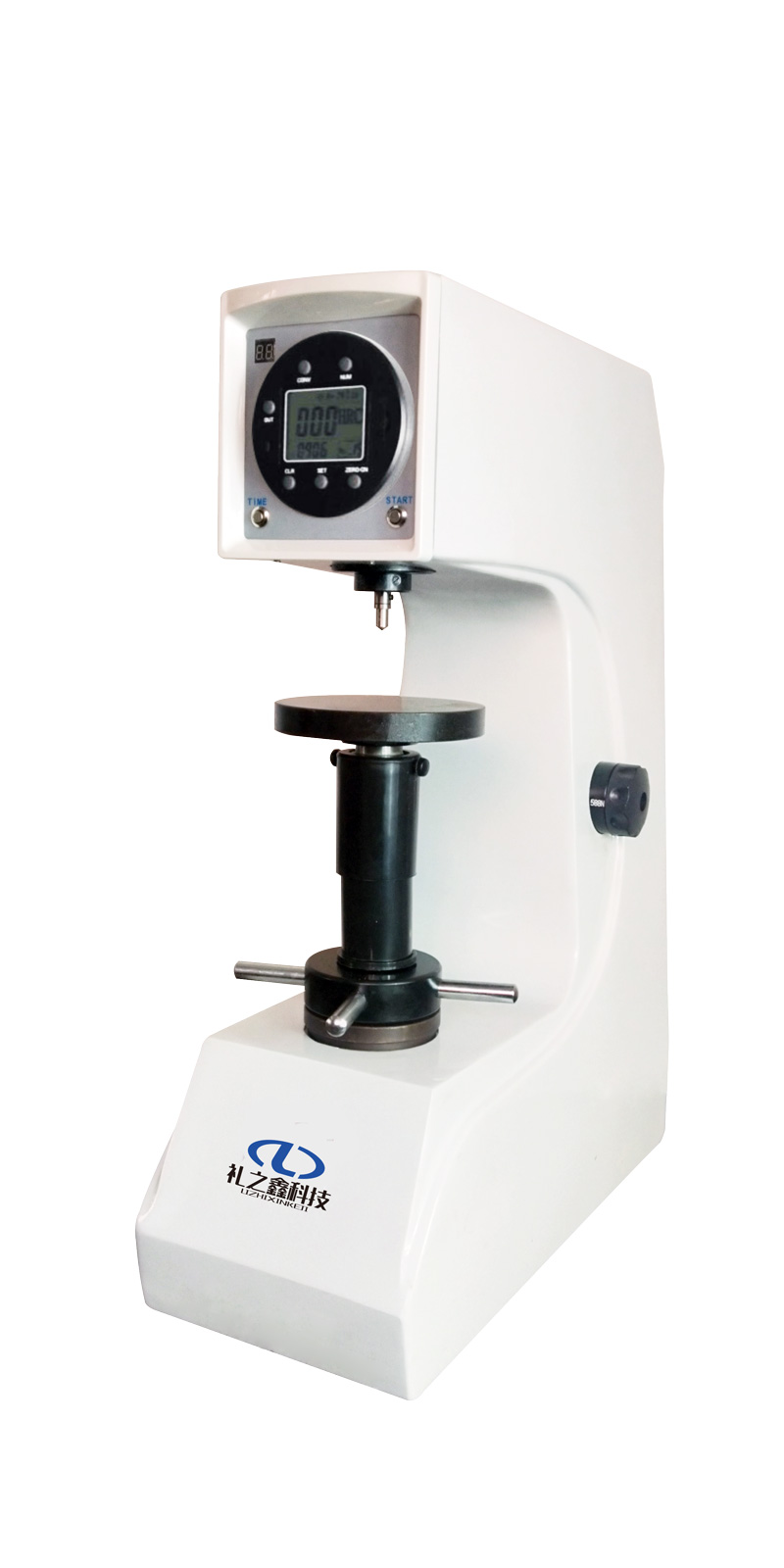

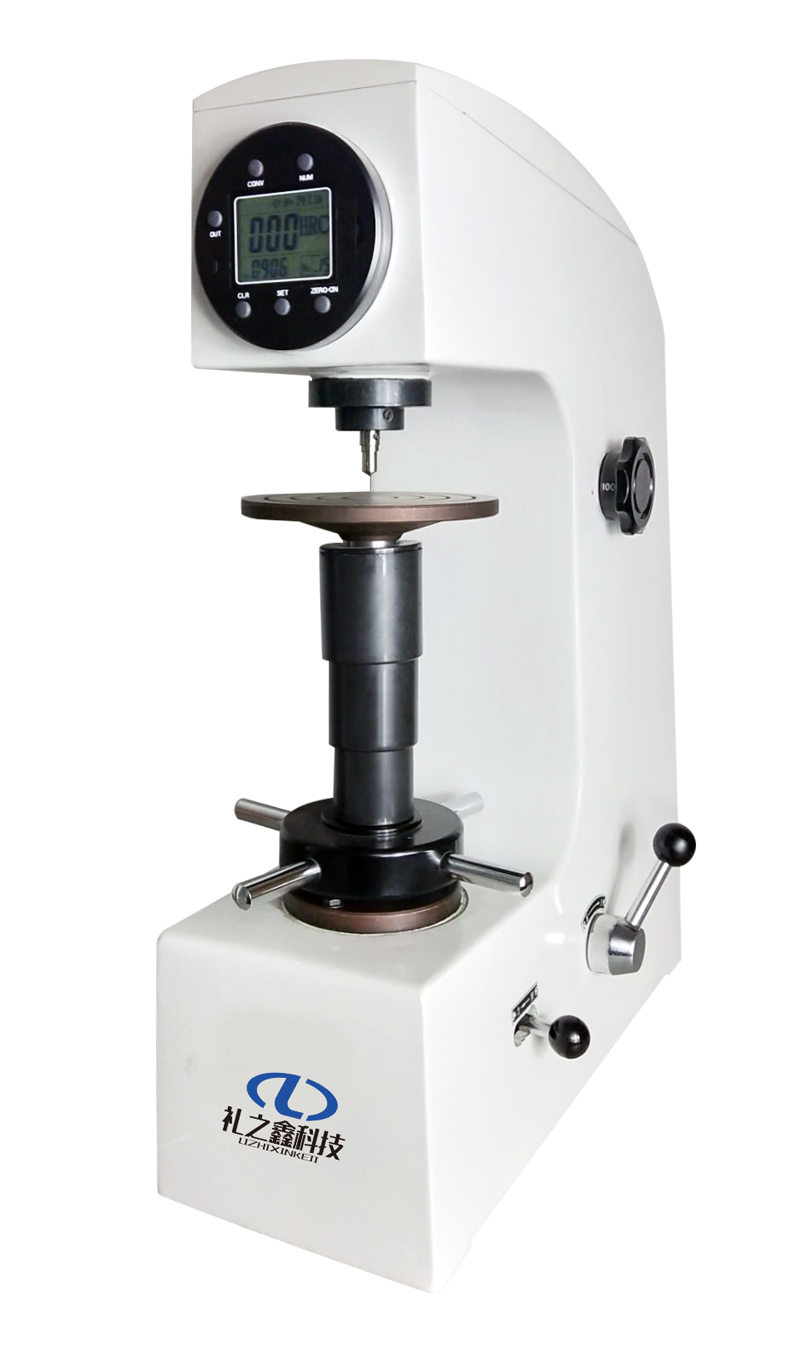

● The HR-150S, HRD-150, 200HRD-150S Ordinary/Electric simple digital display Rockwell hardness tester is the digital displayed hardness value, the loading time and unit conversion can be set;
● The machine body is integral casting by high quality cast iron, with the automotive paint treatment process, the appearance is round and beautiful;
●Read the test result directly from the digital display meter, and can be automatically converted to Brinell hardness value and Vickers hardness value;
● Adopt the precision hydraulic buffer with integral casting, no buffer leakage, and the
loading is smooth, no impact, and the speed is adjustable;
● HRD-150S, 200HRD-150 the loading, holding and unloading of the test force is automatic controlled by the motor, the manual operation error of manual Rockwell hardness tester is eliminated;
●Accuracy is in line with GB/T230.2, ISO6508-2 and American ASTM E18 standard.
主要參數:
Main Parameters:
型號 Model |
HR-150S |
HRD-150S |
200HRD-150S |
測量范圍 Range of Measurement |
20-95HRA,10-100HRBW,20-70HRC |
||
試驗力 Test Force |
588.4、980.7、1471N(60、100、150kgf) |
||
試件允許高度 Available Maximum Height of Specimen |
170mm |
200mm |
200mm |
壓頭中心到機壁距離Beeline between Indenter Center and Wall |
135mm |
135mm |
165mm |
硬度分辨率 Hardness Resolution |
0.1HR |
0.1HR |
0.1HR |
加荷方式 Loading Mode |
手動 Manual |
電動 Electric |
數控 Numerical Control |
電源 Power Supply |
AC 220V,50Hz |
||
外形尺寸 Outline Dimension |
466*238*630mm |
510*230*730mm |
510*290*730mm |
重量 Weight |
65kg |
75kg |
80kg |
