產品介紹

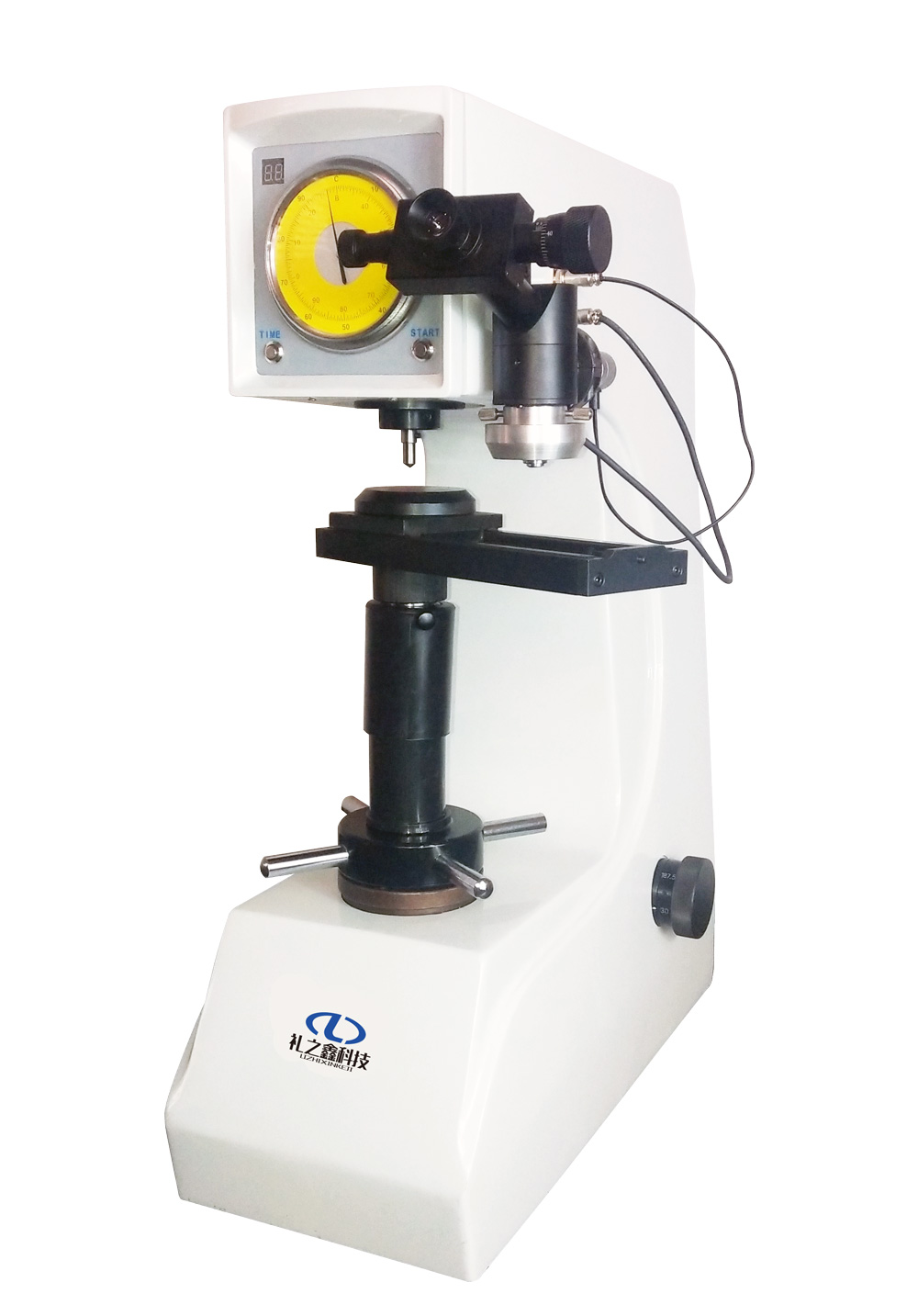

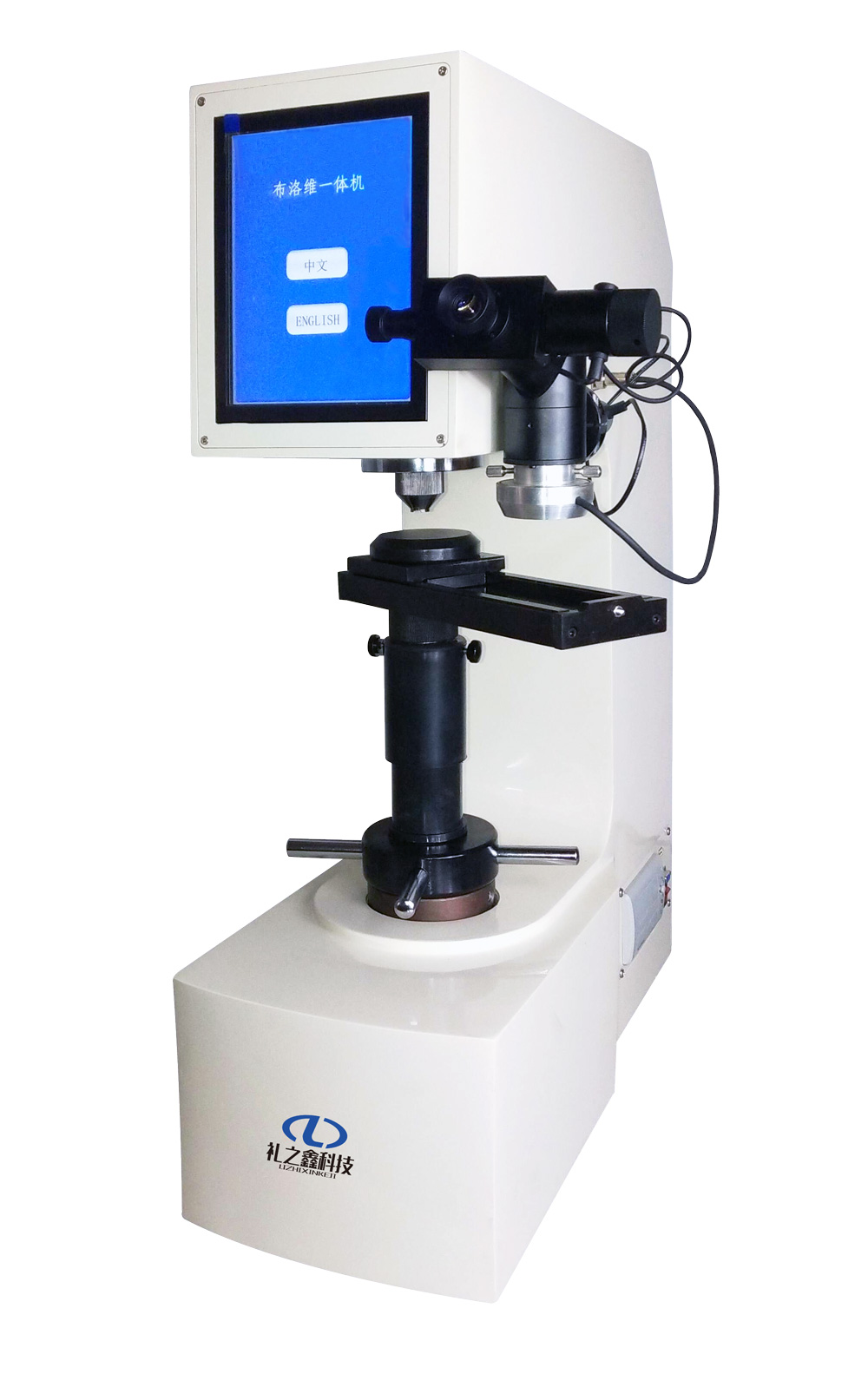

1. HBRVS-187.5數顯布洛維硬度計采用8寸觸摸屏和高速ARM處理器，顯示直觀，人機互動友好，操作簡便；

2. 機身使用優質鑄鐵一次澆鑄成型，配合以汽車烤漆處理工藝，外形圓潤美觀；

3. 測量裝置采用光柵位移傳感器，通過液晶屏顯示結果，并可顯示與設置測試標尺、試驗力、壓頭類型、保荷時間、換算單位等；

4. 具備了布氏、洛氏、維氏三種試驗方法，多級試驗力，能滿足多種硬度測試要求；

5. 電子閉環控制施加試驗力，實現了試驗力的自動加荷、保荷、卸荷的自動化運作;

6. 高清測量和觀察-雙物鏡組合，結合內置長度編碼器的高清測微目鏡，實現了壓痕對角線的一鍵測量，極大地減少了人為操作干擾與讀數誤差；

7. 內置測試軟件可對機器硬度值進行修正；

8. 便捷控制系統，可自動進行全硬度標尺的單位轉換；

9. 內置打印機，并可通過RS232端口輸出數據。

Product Features:

● HBRVS-187.5 Brinell-Rockwell-Vickers Multi-Function digital hardness tester adopt 8 -inch touch screen and high-speed ARM processor, Visual display, friendly man-machine interaction, easy operation；

● The machine body is integral casting by high quality cast iron,, with the automotive paint treatment process, the appearance is round and beautiful;

● The measuring device adopt grating displacement sensor, the test results are displayed on the LCD screen, the test scale, test force, indenter type, holding time and the conversion unit can be displayed and set；

● It has three kinds of test methods: Brinell, Rockwell and Vickers, and multi-level test force, which can meet various hardness test requirements；

● The electronic closed-loop control exerts the test force, fully realizes the automatic operation of loading,holding and unloading of the test force;

● HD measurement and observation - dual objective lens combination, combined with the built-in length encoder HD micrometer eyepiece, to achieve indentation diagonal one-key measurement, greatly reduce the manual interference and reading error；

● The built-in test software can correct the hardness value of the machine；

● Convenient control system can automatically convert the unit of full hardness scale;

● Built-in printer, and can output data through the RS232 port.

主要參數：
