產品介紹：

● HV（S）-1000（A）T觸摸屏數顯自動轉塔顯微維氏硬度計，采用8寸觸摸屏和高速ARM處理器，顯示直觀，人機互動友好，操作簡便；運算速度快，數據庫巨量存儲，數據自動修正，并提供數據折線報表；

● 機身使用優質鑄鐵一次澆鑄成型，配合以汽車烤漆處理工藝，外形圓潤美觀；

● 渦輪蝸桿升降系統極大的提高測試穩定性以及測試精度，測試完成后無需再次對焦；

● 配置了自動轉塔功能，高清測量和觀察-雙物鏡組合，結合內置長度編碼器的高清測微目鏡，實現了壓痕對角線的一鍵測量，極大地減少了人為操作干擾與讀數誤差；

● 便捷數控系統，可自動進行全硬度標尺的單位轉換；

● 可設置硬度值，當測試值超過設定范圍時，發出報警音；

● 具有軟件硬度值修正功能，可以在一定范圍內直接對硬度值進行修正；

● 具有數據庫功能，對試驗數據自動進行分組保存，每組可保存10個數據，可以保存2000個以上數據；

● 具有硬度值曲線顯示功能，直觀顯示硬度值的變化；

● 可選配CCD圖像處理系統，另可選配努氏壓頭，進行努氏硬度測量；

● 配置無線藍牙打印機，并可通過RS232、USB接口輸出數據；

● 精度符合GB/T4340.2-2018  ISO6507-2 和美國ASTM E384。

Product Features:

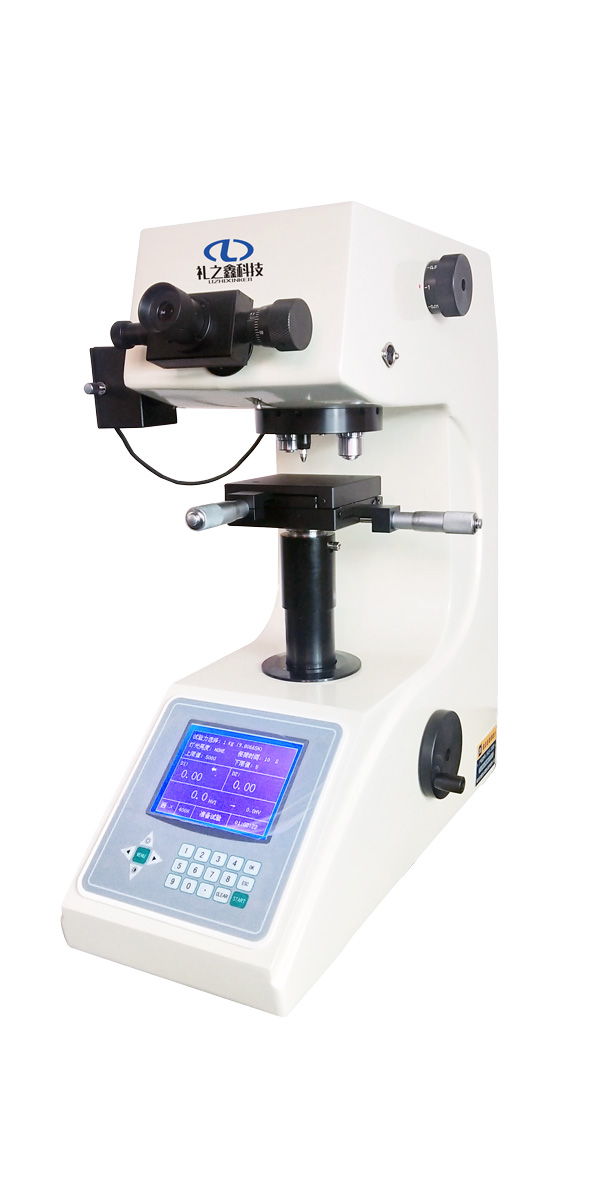

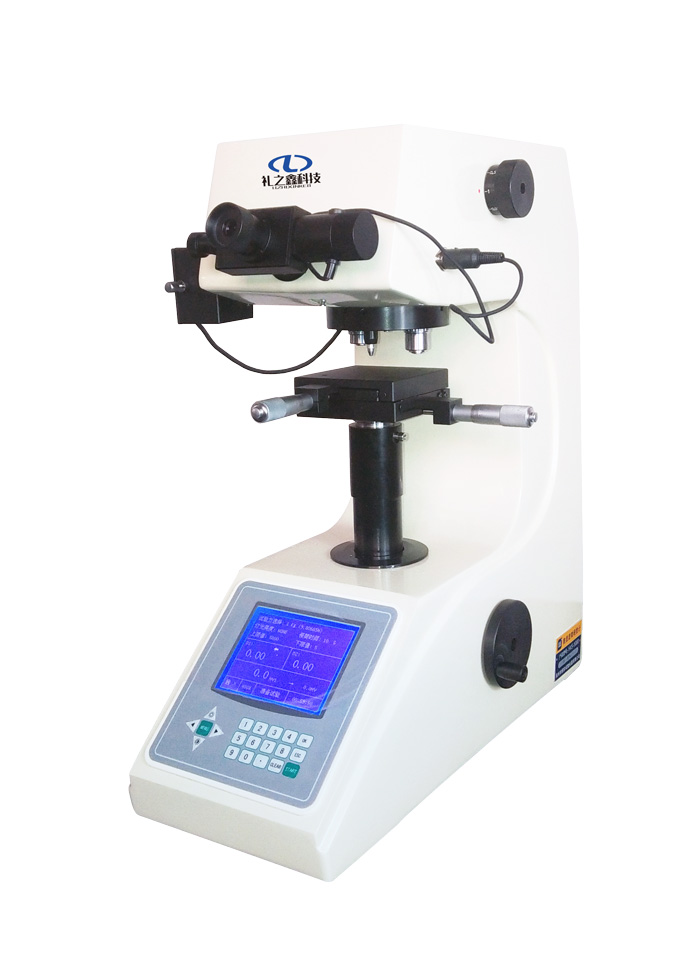

●  HV（S）-1000（A） Digital auto turret micro vickers hardness tester, the test results are displayed on the LCD screen, the test scale, test force, indenter type, holding time and the conversion unit can be displayed and set；

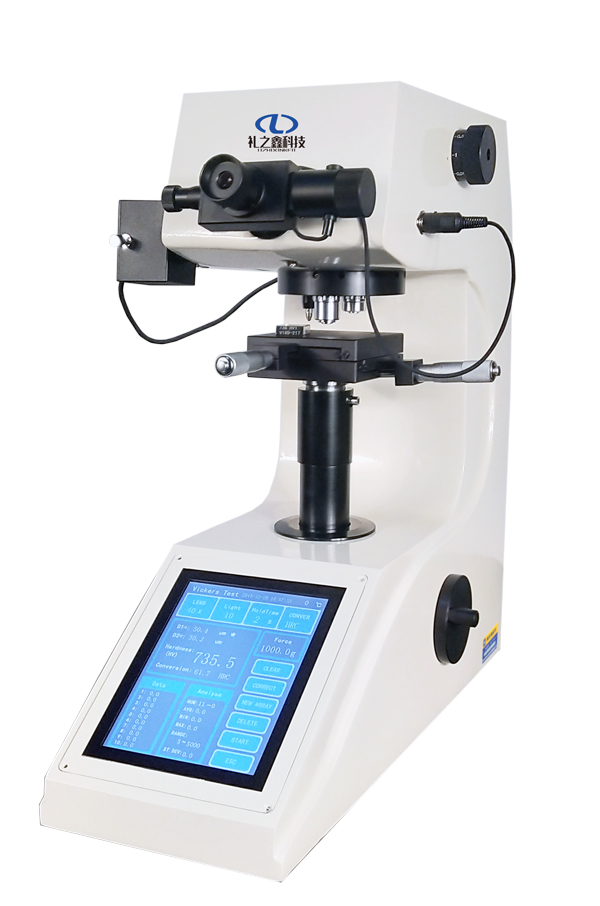

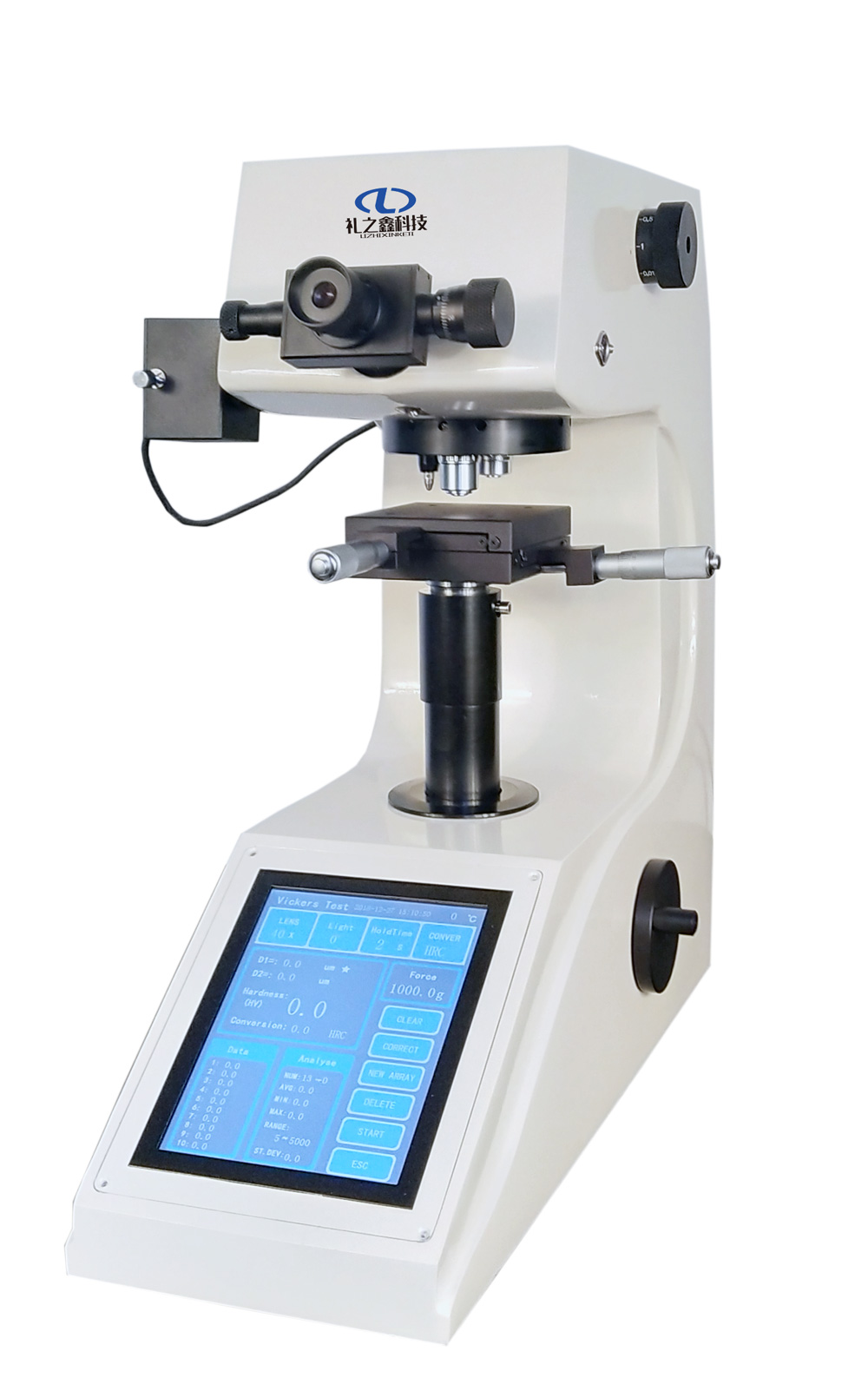

● HV（S）-1000(A)T Touch-screen digital auto turret micro vickers hardness tester, adopt 8 -inch touch screen and high-speed ARM processor, Visual display, friendly man-machine interaction, easy operation, Fast operation speed, extensive database storage, data automatic correction, and provide data broken line report;

● The machine body is integral casting by high quality cast iron, with the automotive paint treatment process, the appearance is round and beautiful;

● The turbo-worm lifting system can greatly improve the test stability and accuracy, and there is no need to focus again after the test is completed;

● Equipped with automatic turret function, HD measurement and observation - dual objective lens combination, combined with the built-in length encoder HD micrometer eyepiece, to achieve indentation diagonal one-key measurement, greatly reduce the manual interference and reading error；

● Convenient control system can automatically convert the unit of full hardness scale;

●The maximum and minimum hardness values can be set, when the test value exceeds the set range, an alarm sound will be issued；

●With the function of software hardness value correction, the hardness value can be directly corrected within a certain range；

● With the database function, the test data can be saved automatically in groups, each group can save 10 data, total can save more than 2000 data;

● With the hardness value curve display function, intuitive display the changes of hardness value;

● CCD image processing system can be optional, the knoop indenter can be selected to measure the knoop hardness;

● Equipped with wireless blue-tooth printer, the data can be output through RS232 and USB interface port；

● Accuracy is in line with GB/T4340.2 ISO6507-2 and us ASTM E384.

主要參數：

Main Parameters:
