產品介紹

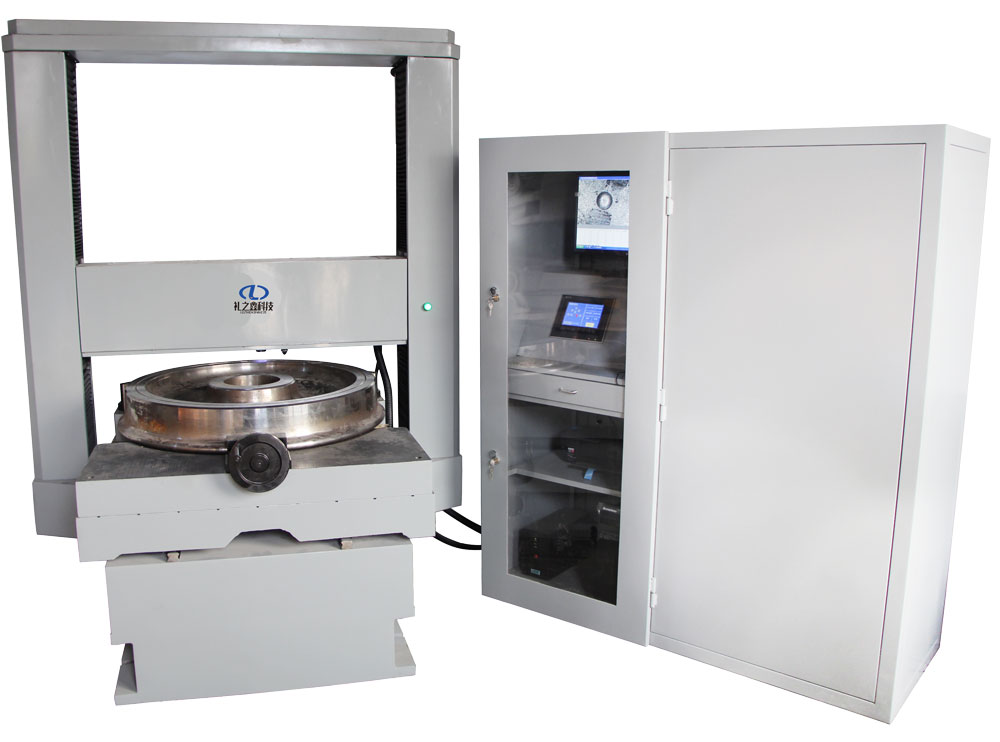

● HBMS-3000C數顯門式電子布氏硬度計采用先進的設計理念，機電諸方面均采用當今硬度計領域先進技術，檢測結果準確，示值重復性強，自動化程度高,是當今國內先進的布氏硬度計之一，廣泛應用于石油機械、鐵路器材、汽車輪轂、飛機制造、礦山機械、特殊鋼等行業；

●  機身及工作臺采用精密鑄造工藝，構造堅固、剛性好、可靠、耐用；

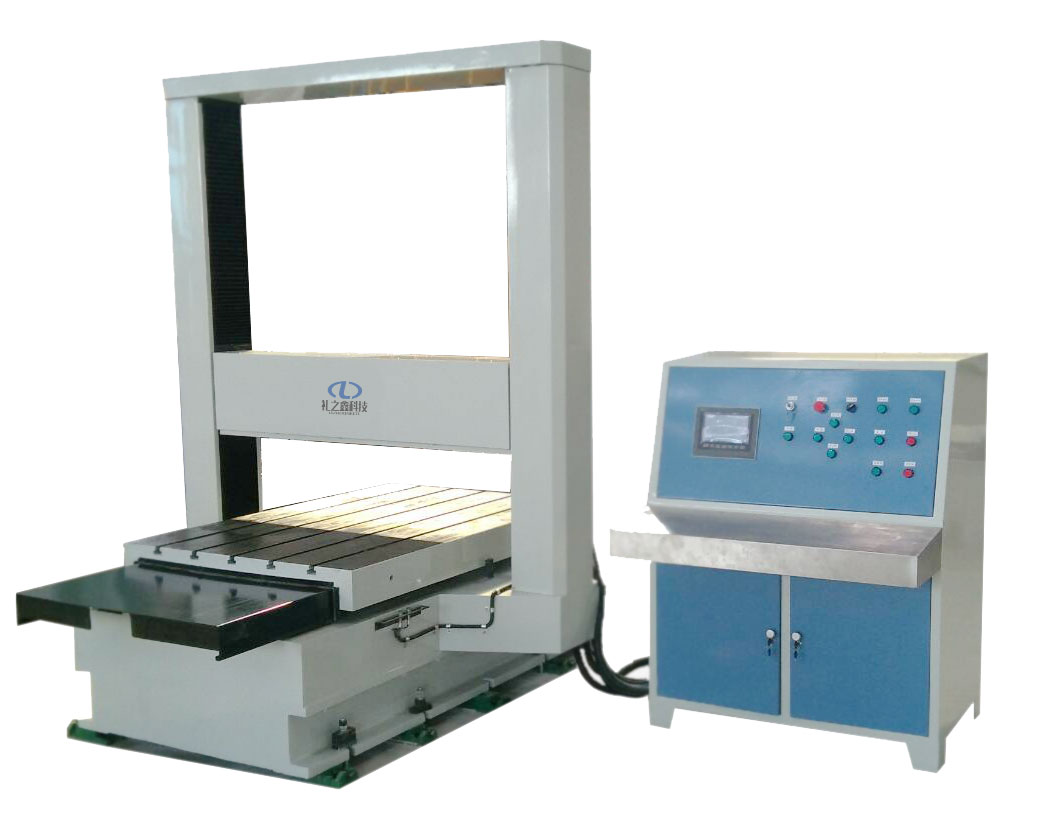

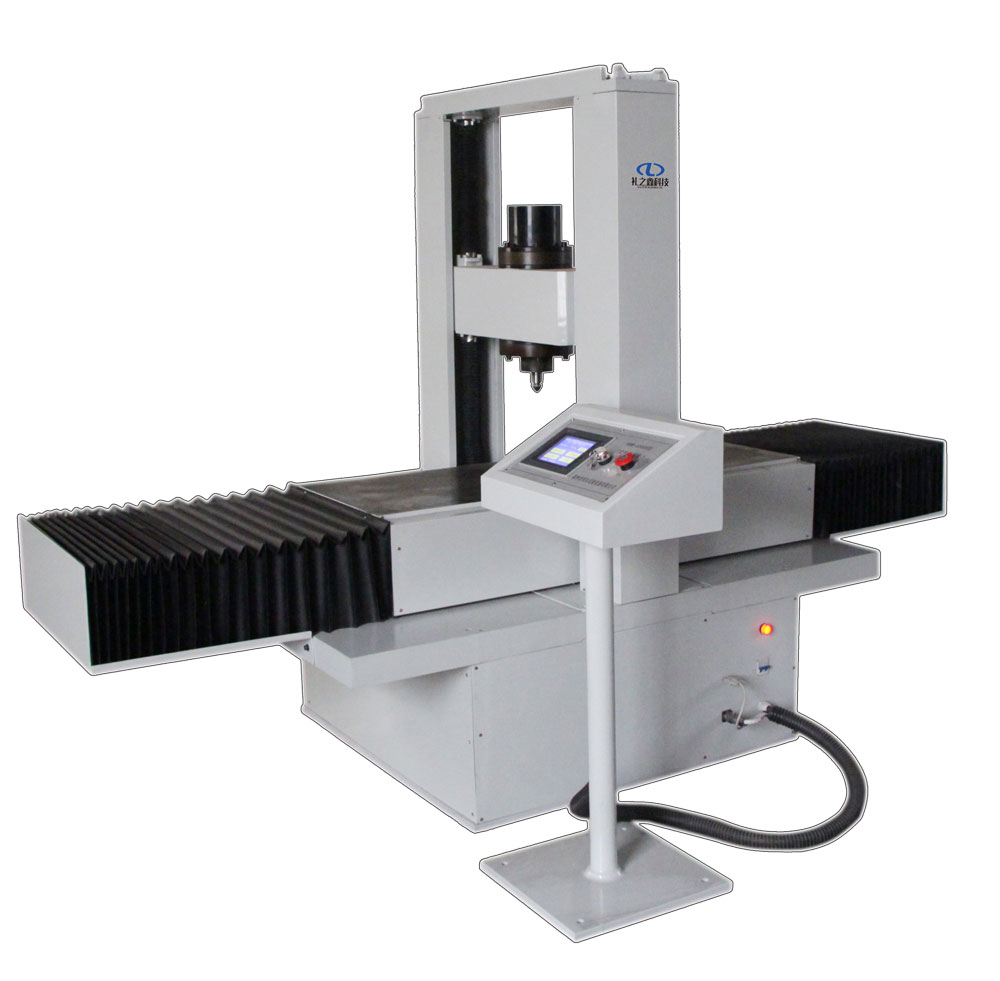

●  門式機架，大型可移動工作臺，移動距離1000mm;

●  配備布氏CCD圖像自動測量系統，圖像處理模塊可對壓痕進行封閉式抓拍，自動顯示布氏硬度值并完成硬度單位換算，保存測試數據組并自動生成硬度測試報告及報表。測試數據保存于離線數據庫中；

●  測試機構采用高精度輪輻式壓力傳感器；加載裝置內置精密壓力傳感器，試驗力值穩定可靠，并具備試驗力自動補償功能；

●  采用自主研發的數顯門式電子布氏硬度計專用數控系統，運行速度快，全閉環式由快到慢梯度施加試驗力，確保了試驗力施加平穩無沖擊；

●  采用當代先進高速微處理器，瞬間響應快，保證試驗力精度穩定在±1%以內；

●  步進電機，高精度滾珠絲杠及直線導軌；定位準確，維護簡便；

●  試驗力、加載飽和時間、進給速度、測試速度可人為調整控制；

●  自動化測量，消除人為操作干擾與讀數誤差；

● 精度符合GB/T231.2-2018，ISO 6506-2和美國ASTM E10。

Product Features:
● HBMS-3000C digital Gantry-Mode electric Brinell hardness tester with advanced design concept,

mechanical and electrical aspects are used advanced technology in the field of hardness tester, accurate test results,  strong repeatability indicating value and high degree of automation., is one of the most advanced Brinell hardness tester in China, widely used in petroleum machinery, railway equipment, automobile hub, aircraft manufacturing, mining machinery, special steel and other  industries；

● The machine body and worktable adopt precision casting technology, which is firm, rigid, accurate and durable；

● Gantry-Mode frame, large movable table, maximum movement distance 1000mm;

● Equipped with Brinell CCD image automatic measurement system, the image processing module can take the closed snapshot of indentation, automatically display the Brinell hardness value and complete hardness unit conversion,save the test data group and automatically generate hardness test report and statement.The test data is stored in an offline database；

● Adopt the Self-Developed gate-type electronic Brinell hardness tester special numerical control system, fast running speed, full closed loop from fast to slow gradient applied test force, ensure the test force exerted smooth and no impact;

● Adopt the modern advanced high speed microprocessor, the instantaneous response is fast, ensure the test force accuracy is stable within ±1%;

● Stepper motor, high precision ball screw and linear guide, accurate positioning and easy maintenance；

●Testing force, loading saturation time, feed speed and testing speed can be adjusted manually

●The test process is automated without operation error；

● Automatic test, Eliminate manual operation interference and reading error;
●Accuracy is in line with GB/T231.2, ISO 65

主要技術參數:

Main Parameters:

配置明細

Configuration List
