產品介紹:

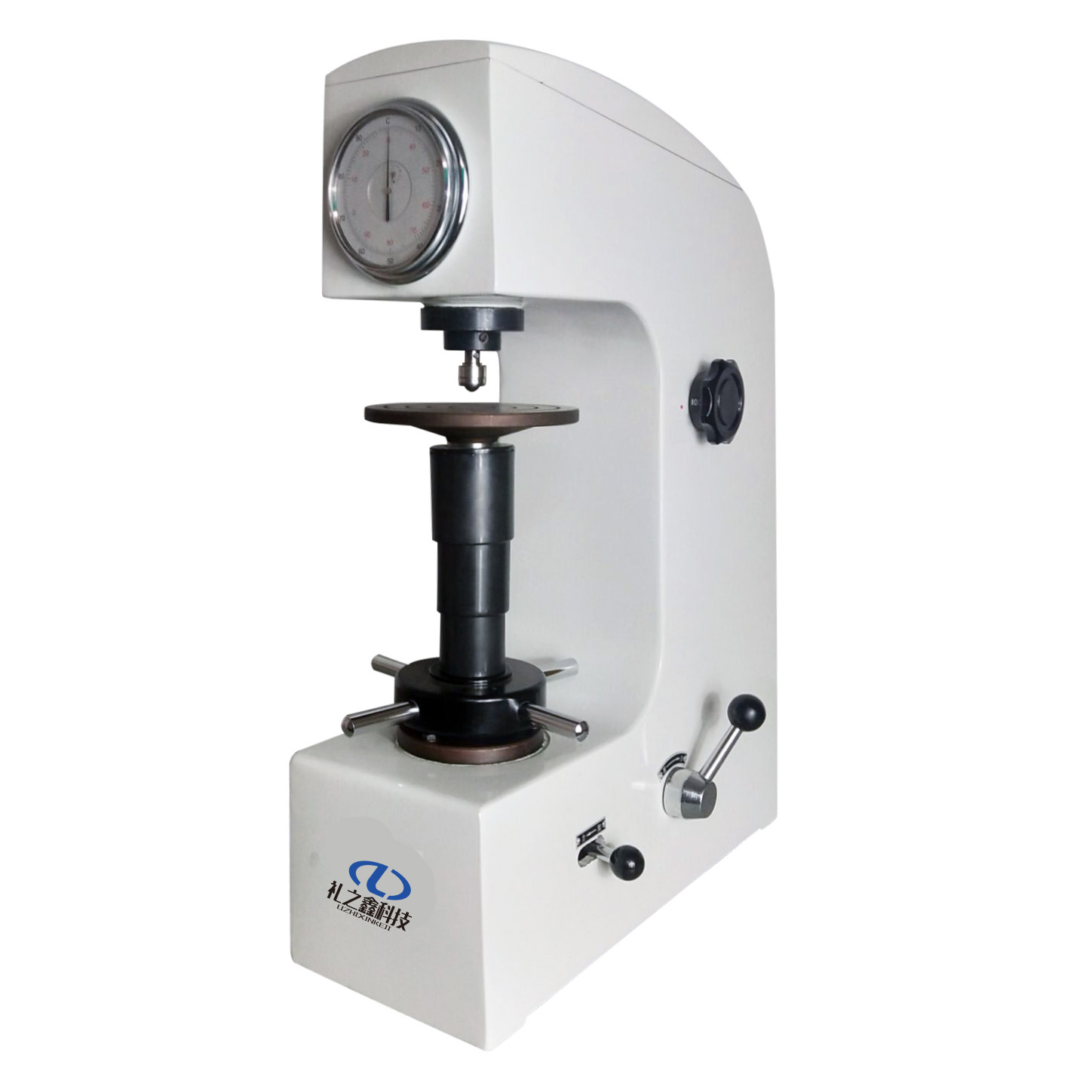

1.LZX-150塑料手動洛氏硬度計, 采用機械式手動測試,無需電源,適用范圍廣,操作簡便,具有良好的經濟性和實用性;
2.機身使用優質鑄鐵一次澆鑄成型,配合以汽車烤漆處理工藝,外形圓潤美觀;
3.表盤直接讀取硬度值,并可選配洛氏的其它標尺;
4.采用了無摩擦主軸,試驗力精度高;
5.采用了一體鑄造的精密液壓緩沖器,無緩沖液泄漏,且加卸荷平穩、無沖擊、速度可調;
6.精度符合GB/T230.2-2018、ISO6508-2和美國ASTM E18標準。
Product Features:
1.LZX-150ockwell hardness testers adopt mechanical manual test, without power supply, wide application range, easy operation, good economy and practicality;
2.he machine body is integral casting by high quality cast iron, with the automotive paint treatment process, the appearance is round and beautiful;
3.ead the hardness values directly from the dial, and it can be matched with other scales of Rockwell, such as: HRD, HRF etc...;
4.Adopt the Friction-Free spindle, high test accuracy;
5.Adopt the precision hydraulic buffer with integral casting, no buffer leakage, and the;
6.loading is smooth, no impact, and the speed is adjustable;
The accuracy is in line with GB/T230.2-2018, ISO6508-2 and American ASTM E18 standard. |
Main Parameters:
型號 Model |
LZX-150 |
測量范圍 Range of Measurement |
70-100HREW,50-115HRLW; 50-115HRMW,50-115HRRW; |
試驗力 Test Force |
588.4、980.7、1471N (60、100、150kgf) |
試件允許高度 sable Maximum Height of Specimen |
170mm |
壓頭中心到機壁距離Beeline between Indenter Center and Wall |
135mm |
硬度分辨率 Hardness Resolution |
0.5HR |
外形尺寸 Outline Dimension |
466*238*630mm |
重量 Weight |
65kg |
